Riot Renovation · Crew card

Wainscoting Standard

01Chair rail height

41"
Floor to top of chair rail
7 ft32"
8 ft37"
9 ft41"
10 ft44"
Low wainscoting, no crown
  • WindowLow rail 3" under the apron. Never under 32".
  • TallRail stops into the window casing.
  • SwitchRail never crosses a switch plate.

02Layout

Molding framesFlat boards
You install

Shaped molding, mitered corners

Flat 1x3 boards, square cuts

Backer

No

Yes, ¼" MDF

Inside each box

Painted wall

Flat panel

3"Every gap
24"Frame target
NoBacker
  • 3" gap from baseboard, chair rail, corners, casing and between frames.
  • Under a window: frame edges line up with the casing edges.
  • Same width on a wall section. 12" min, 36" max.
  • Outlets go inside a frame. Never under molding or in a gap.
  • Focal wall: center line on the middle frame or middle gap.

Frame = (section − 3 × (frames + 1)) ÷ frames

03Wall planner

Using Molding frames at 41" from steps 1 and 2.

Planning visit: how to measureGo around the room starting at the entry door. Each wall is measured from its left corner.Windows and doors: corner to the left edge of the casing, then the casing width.Outlets and switches: corner to the center of the plate, then floor to the center.Fractions: type 30.3.8 for 30 3/8".

04Buy list

8 ft pieces, 15% waste included.

    Found an outlet that is not on the drawing?
    1. Stop. Don't nail that section.
    2. Add the outlet to that wall in the planner.
    3. The plan redoes the section. Mark it again.
    4. Still red? Send Breno a photo and wait.

    Never notch molding or a board. Never move a box yourself.

    3"Use a 3" spacer block for every gap. Never measure a gap.

    Print and plan links work on riotreno.com.

    Panel layout card

    The numbers to use on site. Inches. Same rules for wainscoting and French panels. Add this page to your home screen.

    One margin everywhere

    3 in

    Gap between boxes, and from every box to base, cap, corner and casing. 4 in on 9 ft walls and up.

    Flat panel

    3.5 in

    Stiles and rails for flat panel wainscoting. A 1x4 board.

    French panel

    1 in

    Box molding width for French panels, 5/8 in proud of the wall.

    The parts

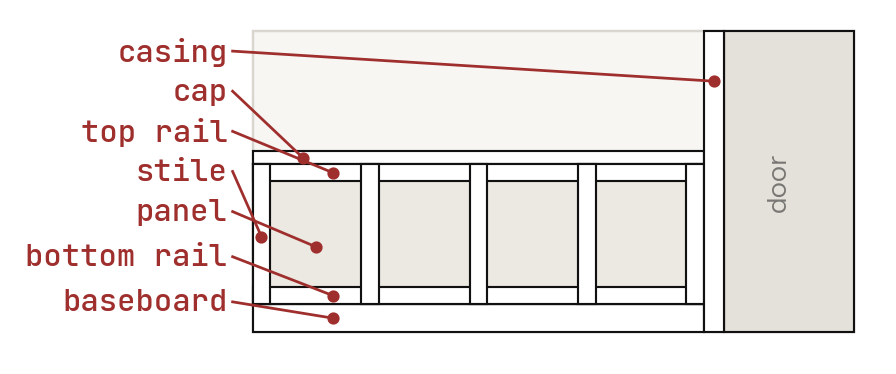

    Flat panel wainscoting parts labeled: cap, top rail, stile, panel, bottom rail, baseboard, casing
    Stile
    The upright board between panels.
    Rail
    The flat board that runs sideways, top and bottom.
    Cap
    The molding on top of the wainscot, also called chair rail.
    Casing
    The trim around a door or window.
    Backer
    1/4 in smooth sheet glued to the wall before the stiles go on.
    Box molding
    A thin molding mitered into a rectangle on the bare wall.
    1x4
    A board 3/4 in thick and 3.5 in wide.
    Level 5
    Drywall skimmed fully smooth, no texture.

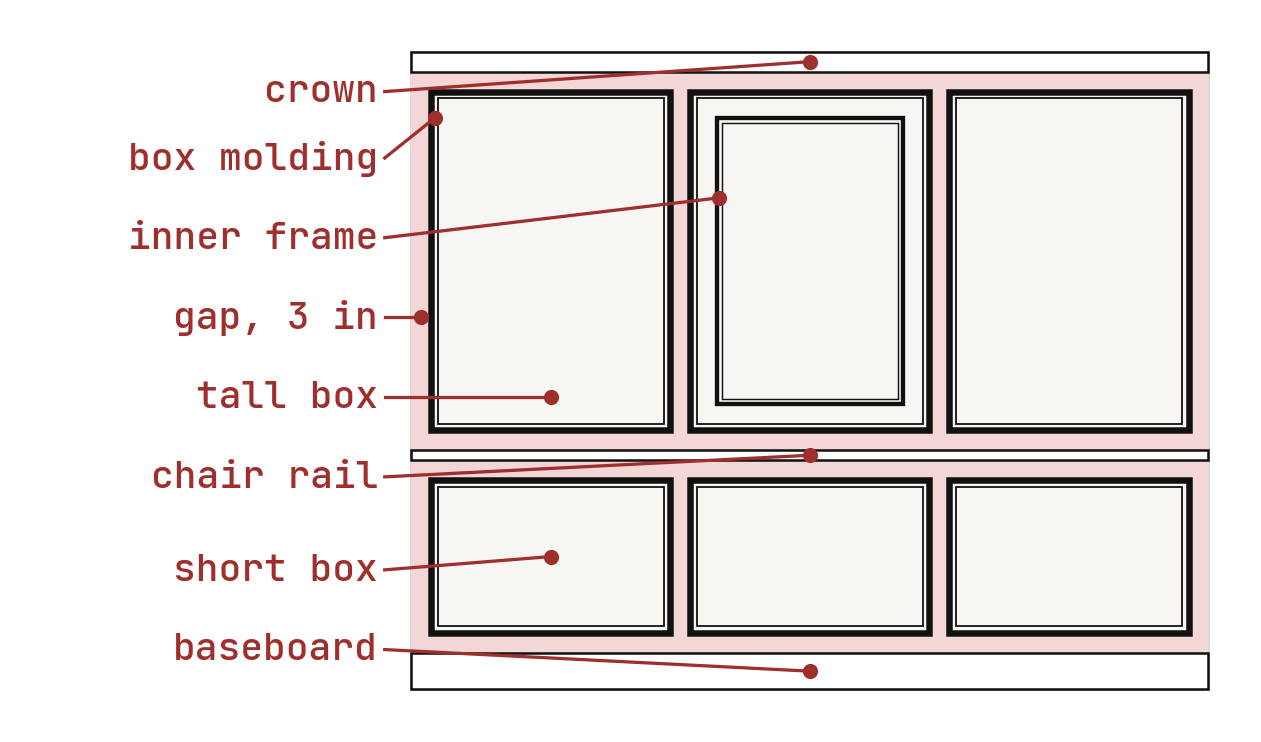

    French panel parts labeled: crown, box molding, inner frame, gap, tall box, chair rail, short box, baseboard

    Height. Where the cap goes

    Classic height is one third of the wall, 32 to 36 in on 8 ft and up from there with the ceiling. The cottage style is the tall version, two thirds of the wall, cap above every switch plate so nothing sits in the field. Both are correct, the work order says which. The one height to avoid is the middle of the wall, it cuts the room in half. Measure from finished floor to the top of the cap and snap a level line.

    middle of the wall, avoid
    cap at 32 in on an 8 ft wall
    baseboard 5.5 in

    Classic, one third

    8 ft ceiling32 to 36 in
    9 ft ceiling36 to 40 in
    10 ft ceiling40 to 44 in

    Tall, cottage style, two thirds

    8 ft ceiling60 to 64 in
    9 ft ceiling66 to 72 in
    10 ft ceiling72 to 80 in
    Rulecap above every switch plate

    Other

    Bathroom54 to 60 in
    Middle of the wallavoid, 44 to 54 in on 8 ft

    Snap a level line for the cap. Do not follow the floor, floors are never level.

    Styles

    Tap the style on the work order.

    crown
    chair rail
    baseboard
    French panel box molding on a black accent wall with inset TV, Riot Renovation, Orange County

    French panels

    Thin box molding mitered into rectangles on the bare wall. The wall itself is the panel, so it only works on smooth walls or after a level 5 skim. Three ways to run it: two rows split by a chair rail, two rows with no rail and the same 3 in gap between them, or one row of tall boxes from baseboard to crown. The most elegant option and the cheapest in material, all the cost is in layout and miters.

    Gap, everywhere3 in (4 in on 9 ft)
    Molding1 in wide, 5/8 proud
    Box shapetaller than wide
    Two rowsupper 1.5 to 2x lower, rail or 3 in gap
    Wallsmooth only

    Sizing the boxes

    • 01Boxes are taller than wide. Aim for height about 1.6 times the width.
    • 02Every box on a wall is the same width. Fix the margins first, then divide what is left.
    • 03Two rows: the upper box is 1.5 to 2 times the height of the lower box.
    • 04Center the boxes on the bed wall or the fireplace, not on the room.
    • 05Never end with a sliver box at a door or corner. Drop one box and widen the rest.
    • 06Move a box so no edge crosses an outlet or switch plate.
    • 07Top boxes stop 3 in below the top line, crown or bare ceiling, same rule either way. Crown is decided before layout, never after.

    Box width

    (wall length minus (boxes + 1) x margin) / boxes

    12 ft wall, 4 boxes, 3 in margin: (144 minus 15) / 4 = 32.25 in per box.

    Double box, when to offer it

    A second, thinner frame inside the first. Only on boxes 24 in and wider, and only on the tall row or a single row layout. From the outside in: 3 in gap, 1 in outer molding, 2 in of bare wall, 3/4 in inner molding, then the field of the box. The 3 in rule is for gaps outside the box only; inside, the two moldings sit 2 in apart so they read as one object. Designer range is 1.5 to 3.5 in between the moldings, inner about two thirds of the outer, same profile family. Below 24 in the two frames crowd each other, so on small boxes and on the short row under a chair rail it is one frame only.

    crown
    single frame
    double box: inner frame, 3/4 in molding, 2 in inside the outer frame
    single frame
    baseboard
    shaded = 3 in gap. Black frame = outer box molding, 1 in.
    crown
    1
    2
    1
    baseboard
    Wide center panel layout on a navy media room wall, Riot Renovation

    Wide center, narrow sides

    The Parisian version of French panels. One wide box in the middle, two matching narrow boxes each side, same 3 in gap everywhere. Use it on a bed wall, behind a sofa or on any wall with one obvious center. Odd number of boxes only.

    Boxes3 or 5, never even
    Center box2x a side box
    Math, 3 boxes(wall minus 12) / 4
    144 in wall33, 66, 33
    • 01Use 3 or 5 boxes so one sits in the center. Never an even number.
    • 02Center box is 2 times a side box. 3 times max on a very long wall.
    • 03Side boxes are identical. On 5 boxes, count units 1, 1.5, 2, 1.5, 1.
    • 04Center on the wall, or on the bed or sofa if the wall has one.
    • 05The center box must still be taller than wide.

    The math, 3 boxes

    (wall minus 4 x 3) / 4 units

    144 in wall: 144 minus 12 = 132. Divide by 4 = 33. Sides 33 in, center 66 in. For 5 boxes divide by 7 units instead.

    cap
    baseboard

    Flat panel

    A 1/4 in smooth backer goes on the wall first, then 1x4 stiles and rails frame recessed flat panels. The backer hides any texture, so this is the Riot default on knockdown walls. Reads clean and modern, works at both the classic 32 in and the tall 60 in height.

    Stiles and rails3.5 in (1x4)
    Backer1/4 in MDF or ply
    Cap2.5 to 3.5 in
    Height32 in or 60 in on 8 ft
    Panelsequal, taller than wide

    Dividing the wall

    • 01Panels are equal width and taller than wide.
    • 02Count stiles as panels plus one. A 5 panel wall has 6 stiles.
    • 03Cap is always narrower than the baseboard. Rails are one third to two thirds of the baseboard width.
    • 04The bottom rail sits on top of the baseboard. If the order says no separate baseboard, one 7 in board is baseboard and bottom rail together.
    • 05Backer on every textured wall. Box molding on knockdown shows the texture inside every frame.

    Panel width

    (wall length minus (panels + 1) x 3.5) / panels

    12 ft wall, 7 panels: (144 minus 28) / 7 = 16.5 in per panel. Field height on a 36 in cap: 36 minus 5.5 base minus 3 cap minus 7 rails = 20.5 in. Taller than wide, correct.

    ledge on 1x4 rail
    baseboard
    Tall white wainscoting above switch height in an Irvine bedroom, Riot Renovation

    Board and batten

    Vertical battens straight on the drywall with a rail and a small ledge on top. No backer, so smooth walls only. Almost always tall, two thirds of the wall, with the battens landing on studs. Farmhouse and transitional rooms, mudrooms, hallways.

    Batten3.5 in (1x4) or 2.5 in (1x3)
    Spacing on center16 in, or 12 to 24
    Height60 to 64 in on 8 ft
    Top rail and ledge1x4 with a 1x2 on top
    Wallsmooth only
    cap
    baseboard

    Raised panel

    Same frame as flat panel, but the panel has a beveled edge that stands proud of the stiles. Traditional, heavier look for dining rooms, libraries and formal entries. Panels float in the frame and must never be glued in.

    Stiles and rails3.5 in
    Bottom rail5.5 in
    Panel bevel1.5 to 2 in
    Cap3.5 in
    Panel movement1/8 in, no glue
    cap
    baseboard

    Beadboard

    Sheets or tongue and groove planks with a small bead every 1.5 to 2 in, under a cap. No layout math, the beads set the rhythm. Bathrooms, laundry rooms, cottage style kitchens. Sheets are fast, planks look better and cost more.

    Bead spacing1.5 or 2 in
    Height36 in, 48 in in bathrooms
    Cap1x3 plus cove or 1x4
    Startfull bead at the visible corner
    Sheet jointsbehind a stile or at a corner
    baseboard

    Shiplap

    Horizontal boards with one even reveal between them, usually floor to ceiling. Start at the top so the cut board hides behind the baseboard. Coastal and modern farmhouse rooms, fireplace walls, ceilings.

    Board face5.25 or 7.25 in
    Reveal1/8 in, a nickel
    Full height on 8 ft13 boards at 7.25 in
    Startlevel line, from the top
    Jointsstaggered, never two on one stud

    Side view. How thick it is

    Imagine the wall cut with a saw and you look at the cut edge. The wall is the hatched band on the left, the room is on the right.

    French panels

    molding, 1 in wide, 5/8 in proud3 in bare wall
    next box

    Room side, you are looking from the side.

    Flat panel wainscoting

    1/4 in smooth backer
    stile or rail, 1x43.5 in wide, 3/4 in thickthe panel is the backer

    Room side, you are looking from the side.

    Textured wall and the client wants French panels: skim to level 5 first or switch to flat panel with the backer.

    Before you nail. Check the work order

    • 01Cap height from finished floor, as written on the order: 32 in on 8 ft, 36 on 9 ft, 40 on 10 ft.
    • 02Margin: 3 or 4 in. Same at base, cap, corners, casings and between boxes.
    • 03Molding or stile: 1 in box molding for French panels, 3.5 in stiles and rails for flat panel.
    • 04Boxes per wall and box width, written on the order. Do not divide on site.
    • 05Baseboard: stays or gets replaced, and its height.
    • 06Backer: yes on any textured wall for flat panel.
    • 07Outlets and switches marked, no edge crossing a plate.
    • 08Tape the layout on the wall and photograph it before the first nail.

    Questions on a layout: text the Riot line before you cut.

    Riot Renovation crew reference. Based on Fine Homebuilding wainscot layout guidance, Wall Panel Planner and Chippy Tools layout references, and common finish carpentry practice of 3 to 4 in box spacing.
